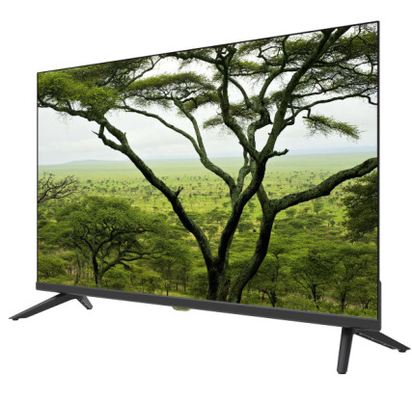

Ultra Narrow Bezel 85 Inch Smart TV Smart Update Frameless Android TV Support USB

Brand Name:	MianHong
Model Number:	A-8529K
MOQ:	300
Price:	Negotiable
Packaging Details:	CARTON BOX GIFT BOX
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CCC, CE, SGS, ISO

Features:

Standard Bezel Design,tempered Glass Available,HIFI-Speaker,ODM/OEM Available,Normal ATV/DTV

Bezel:

Standard,Thin

Resolution:

HD,FHD,UHD

AndroidOS

Sizes:

24",32",38",40",43",55",65",75",85"

Display Type:

LED A+ Screen

Sync Frequency:

50Hz/60Hz

Respone Time:

Color:

Black

Backlight Life:

≥20000hrs

Supply Ability:

2500-3000PCS ONE DAY

Highlight:

Smart Update 85 Inch Smart TV

Support USB 85 Inch Smart TV

Ultra Narrow Bezel Frameless Android TV

Product Description

MH-24WF

LED TV Specification

Model	85''			SMART TV 4K frameless model
Panel						Product Image
Display type	LED A+ screen
Aspect ratio	16:9
Resolution	3840*2160(UHD)
Brightness	290-320d/m2
Respone time	8ms
Sync Frequency	50Hz/60Hz
Backlight life	≥20000hrs
Power to panel	12V@1000mA rms
System&Features						Other Features
TV Standard	PAL, SECAM, NTSC,DVB-T/DVB-T2/DVB-T2S2/ISDB-T/ATSC					HD resolution	480i, 480p, 720p, 1080i, 1080p, 2160P,3840p
Oprating System	Android/weBos/Google
CPU	Quad-Core A55 1.8GHz					GPU	ARM Mali-G52 MP2 (2EE) GPU
Bluetooth version	BT5.0,BT2.1					Cabinet /Color	plastic housing/Black/Option
Sound System	BG, DK, I, L, M/N,A2					Type	Frameless Border
POWER TO PANEL	12V@1000mA rms					RJ45 NETWORK	10/100M auto-identification and DHCP
USB FUNCTION	software upgrade, multimedia play					Button Types	Ground Key Interface
Digital TV system	YES					HD resolution	480i, 480p, 720p, 1080i, 1080p, 2160P
OSD Language	MULTI LUANGUAGE CAN BE CHOICE					Stand base	YES
Power consumption	138W					Wall mount	NO
COAX	PCM/RAW					Main board	T.T982.781(T)
Audio Spearker						Accessories
Audio Output	2*8W(8Ω)/2×10W(6Ω)					Remote Control: 1 Battery(set): 1 Stand: 1 User Manual : 1 Screw: 4
Speakers' Qty'	2
Connectors and Terminal Interfaces
RJ45×1
(mini)CVBS/AUDIO IN ×1
HD IN ×3
USB ×2
EARPHONE OUT ×1
COAX /OPTICAL OUT ×1
ATV/DTV ×1

Packing Details
Size	Outer Carton Dimensions(cm)			N.W (KGS)	G.W (KGS)	Container Loading Qty(pcs)
	L	W	H			20GP	40HQ
85''	2045	200	1275		45	54PCS	130PCS

01H is a 24″ Smart WebOS TV for customers by providing the necessary balanced specifications, in order to fit in kitchen, living room, bedroom at home.

Be Satisfied Better

Grade A LCD Panel

Mianhong(OPEE) always consider using Grade A LCD Panel as default for each product
Grade A Panel has less defective points/pixels, improving display quality

Frameless Screen Design

Up to only 3mm of the width of side frames
Design for eye-tricking viewing

Stable and Slim stands

2 well-designed stands to protect and hold the body of a TV.
Plastic/Metallic, ground stand/wall-mount stand are fully customizable for budget.

2 speaker options

Flexible speaker for different needs.

What is included in the box:

MH-24AF01F
Manual
PowerPlug(Different types supported)
Remote Controller

Model: MH-24AF01F
Brand: OPEE/Your LOGO(ODM/OEM)
System: Android 12/13
Panel Size: 24″
Bezel design: Thin, black/Optional Color
Tuner: T2/S2 Others

Backlight: DLED
Resolution: 1920*1080 / 1366*768
Viewing Angle: 178°H/178°V
Color: 1.6M
Brightness: 300cd/m²
Contrast ratio: 3000:1
Response time: 9.5ms

Power: <= 100W
Voltage: 100V-240V AC 60/50Hz
Audio: 8W+8W

Net Weight: 5KG
Gross Weight: 5KG + Level of Safety
Dimension(Without Stand):

Input Interface: (Optional interface based on demands)
Output Interface: Earphone/Audio-OUT/(Optional interface based on demands)
USB Support: Video/Audio
Bluetooth Support: Yes
